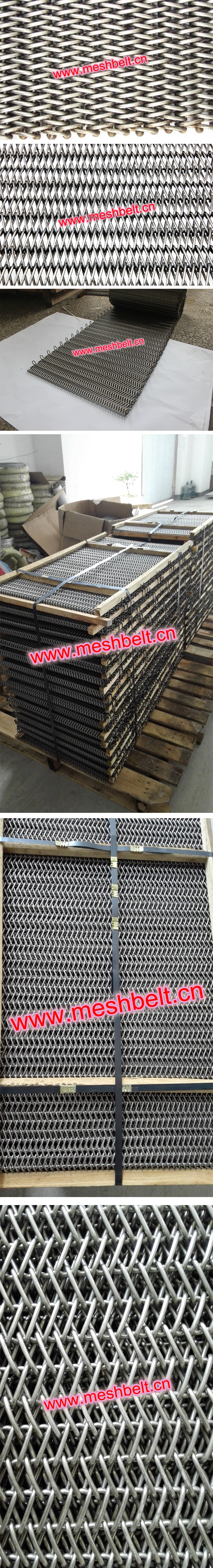

Double balanced weave wire mesh belt



Double balanced weave wire mesh belt

Keywords: double balanced weave wire mesh belt, metal mesh belt, twill weave mesh belt, wire mesh belt company, conveyor belt mesh, conveyor mesh belt

Product Details

Double balance weave type is for applications with particularly high load or for the products which require a narrower aperture.


1) Allowable tension is high, so that heavy load can be carried.

2) Belts can be used at high temperature.

3) Mesh size is small; the belts can be used for transporting small items.

Available materials:

1) Carbon steel

2) Galvanized

3) SUS 201

4) AISI 314 (1150°C)

5) SUS 310S (1090°C)

6) SUH 330 (1150°C)

7) SUS 304 (870°C)

8) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

9) SUS 321 (750°C)

10) SUS 410 (700°C)

11) SUS 430 (700°C)

12) Various metal materials as per your requirements

Typical applications:

1) Food processing

2) Glass annealing

3) Solar cell sintering

4) Coating

5) Draining

6) Baking

7) Industrial curtains

8) Curing

9) Shrink-wrapping

10) Lifting slings

11) Elevating

12) Cladding

We can make double balance weave belt against your photo, drawing or sample.

If you have any interest in this type, please feel free to contact, or just call 0086-187-6231-1618.
